It refers to the angle between the line connecting the two front wheels (or the rear wheel) to the ground contact point and the line perpendicular to the thrust line. The angle value is positive when the right wheel

is in front of the left wheel, and the angle value is negative when the right wheel is in rear of the left wheel.

Causes:

(1)collision

 (2)parts wear.

Under normal circumstances, the setback within 0.5" is no problem.

The sum of the kingpin inclination angle and the wheel camber angle is called the included angle.

The angle at which the front wheels turn when the car is turning (the steering angles of the left and right wheels are different).

(1)Prevent the tire from slipping.

(2) Reduce tire wear.

(3) Reduce the sound when the car is turning.

The angle at which the front wheels turn when the car is turning (the steering angles of the left and right wheels are different).

(1)Prevent the tire from slipping.

(2) Reduce tire wear.

(3) Reduce the sound when the car is turning.

Viewed from the front of the vehicle, the knuckle kingpin axis or the imaginary kingpin axis is inclined inward in the transverse plane; the angle formed with the plumb line is called the Steering Axis Inclination.

Function: Automatically correcting, steering is light and easy.

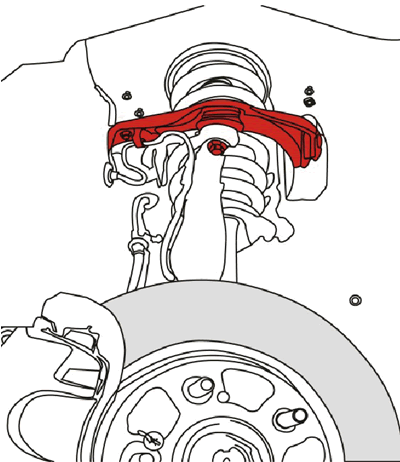

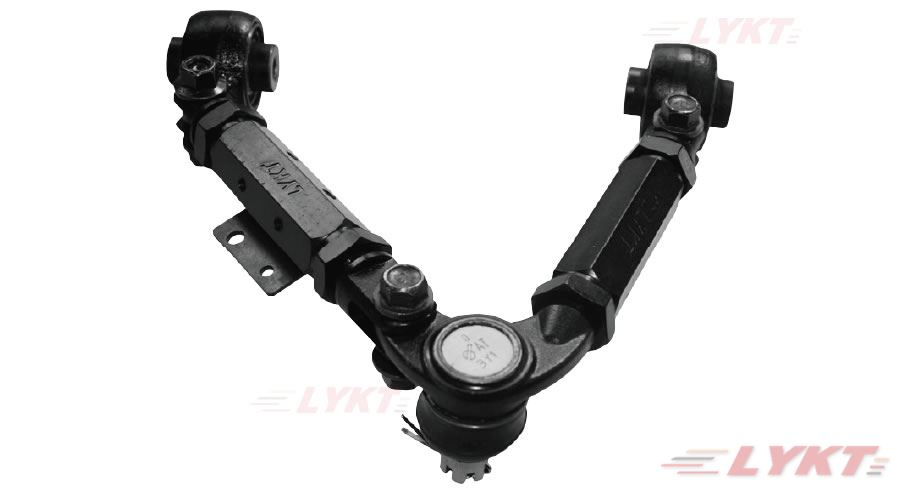

The included angle formed with plumb line as the steering knuckle kingpin axis or hypothetical kingpin

axis tilts backward within longitudinal plane is known as kingpin caster angle, it affects the vehicle driving stability and automatic returning capability. Kingpin positive caster angle: when observing from side of the vehicle, kingpin axis tilts backward within longitudinal plane.

Kingpin negative caster angle: when observing from side of the vehicle, kingpin axis tilts forward within longitudinal plane.

Symptom:

(1)After making a turn, automatic returning capability is insufficient;

(2)Vehicle is unstable under high-speed driving.

Consequence: vehicle deviates off track.

Example: the kingpin positive caster angle of left front wheel is set as 0.3°, that of right front wheel is set as 0.8-0.3°, in such case, the vehicle would deviate toward left.

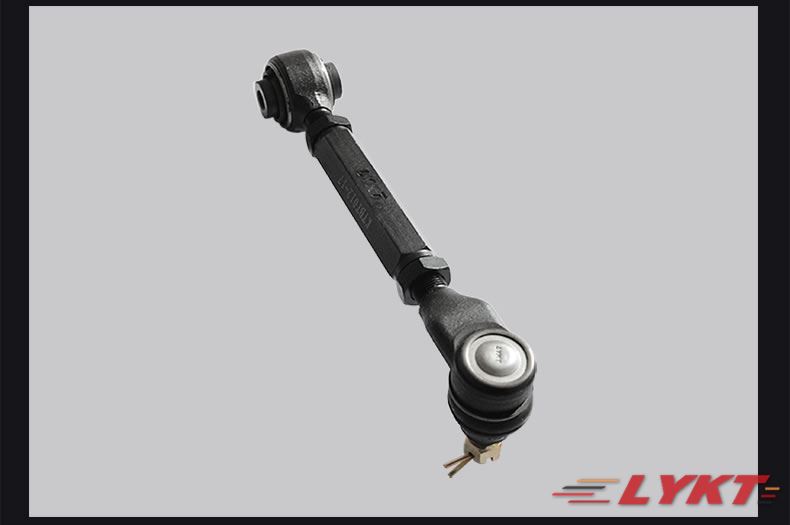

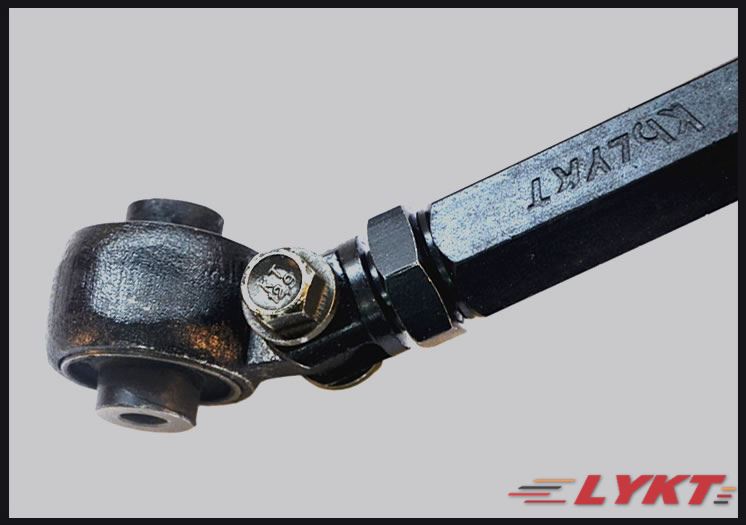

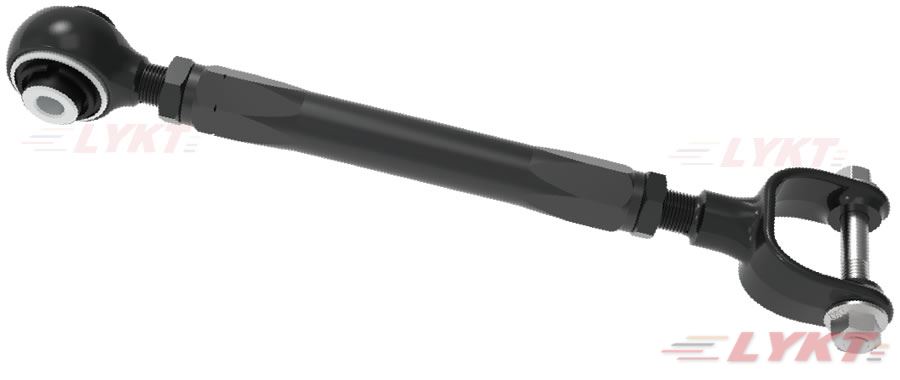

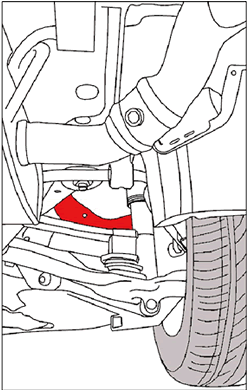

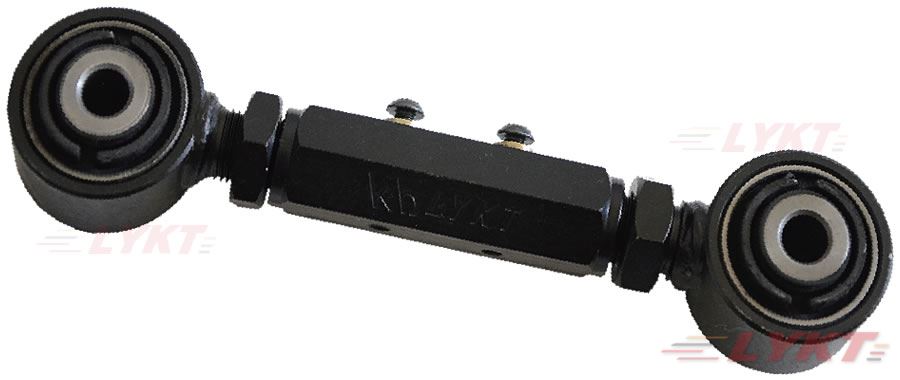

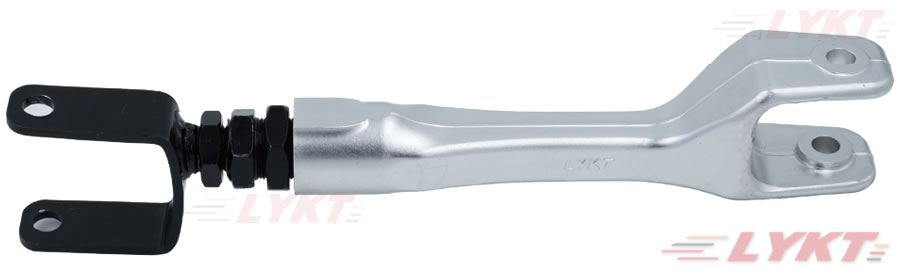

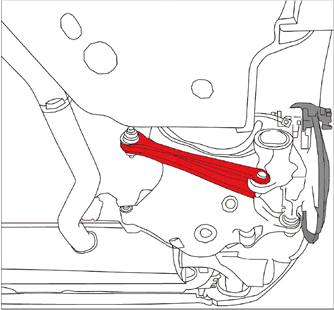

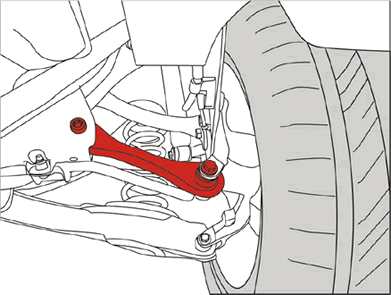

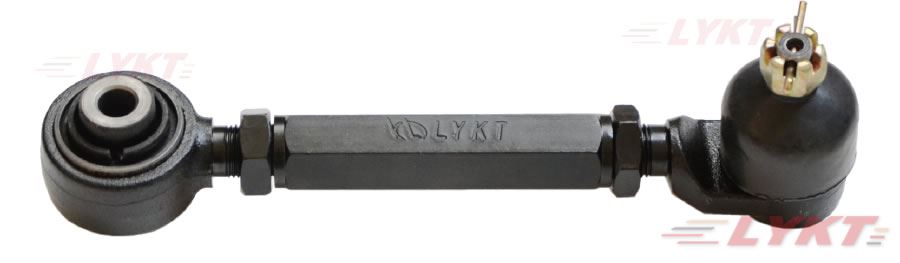

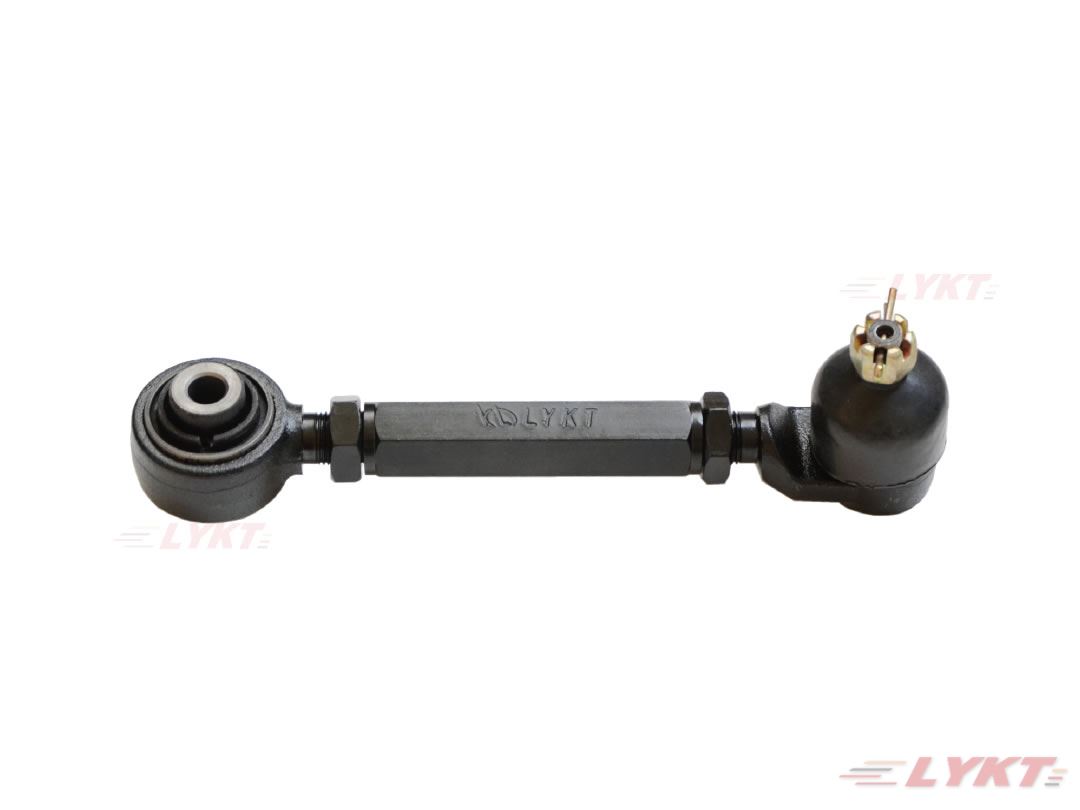

Look down at the angle between the center plane of the wheel and the longitudinal center plane of the vehicle from the right above of the vehicle.

Positive toe angle: The front end of the wheel is closer to the longitudinal centerline of the vehicle than the rear end (pigeon-toed).

Negative toe angle: the front end of the wheel is farther from the longitudinal centerline of the vehicle than the rear end (toe out).

Use cases:

(1) In a smooth field, using a small amount of front wheel front toe angles, it can keep the car stable during acceleration. But it will reduce the steering reaction of the car when entering the curve, at the same time it will increase the steering reaction when accelerating the exit of curve.

(2) Use a negative toe angle to get more steering when entering a corner, however, it will make the car unstable when it accelerates or going through the undulating road, and it will deviate.

(3)When driving on a flat road, it is recommended to use a negative toe angle of 0 to 1 degree.

(4)Positive toe angle or negative toe angle can be used with Ackerman. Use a certain amount of negative toe with a smaller Ackerman effect, increase the response to the steering front section (starting into the curve) and reduce the reaction to the steering rear section (in the curve); Use a certain amount of positive toe angles with a larger Ackerman effect, to reduce the reaction to the steering front section and increase the reaction in

the steering rear section.

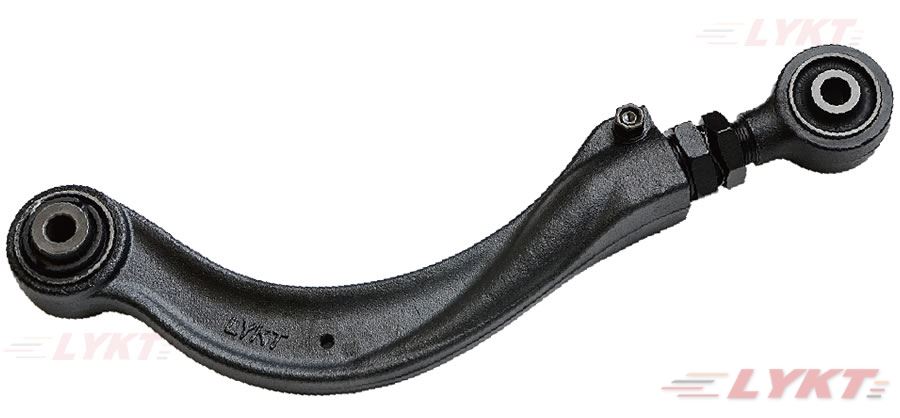

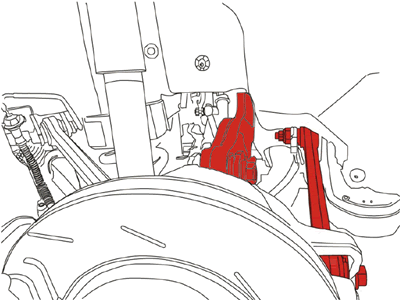

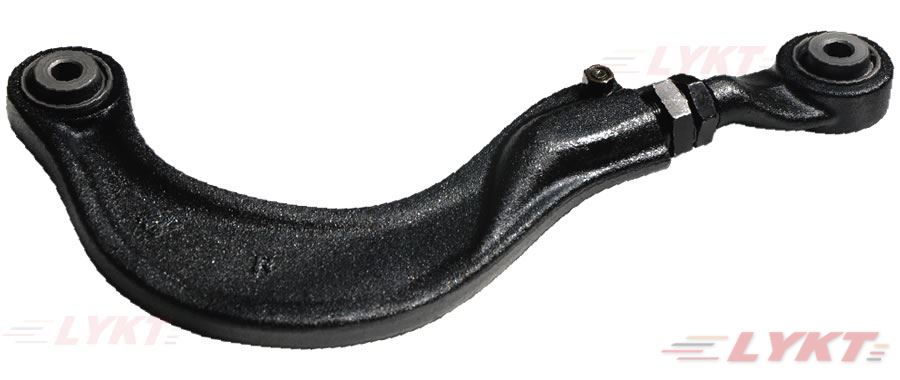

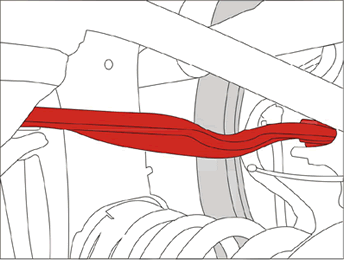

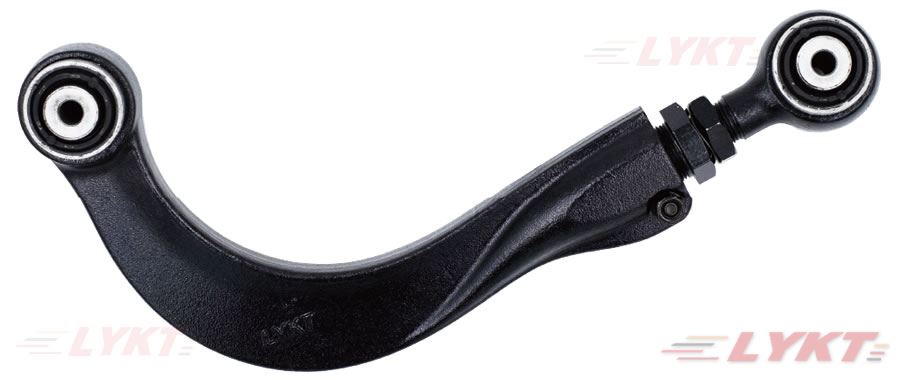

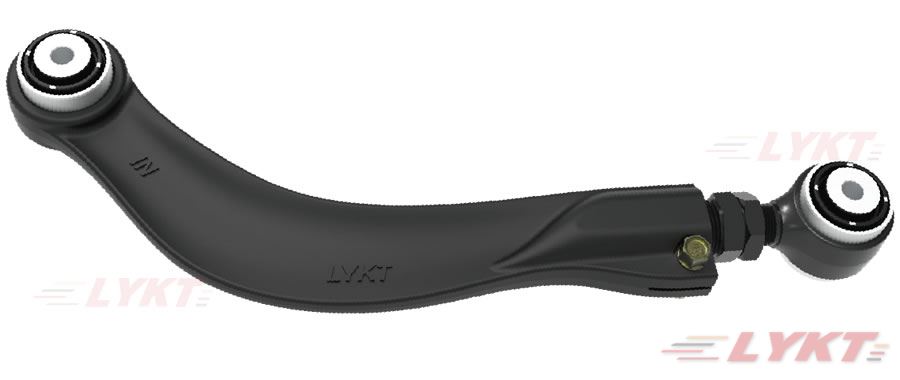

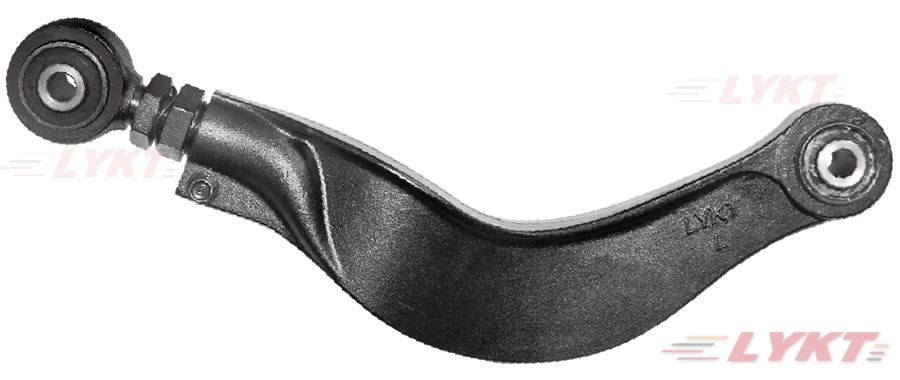

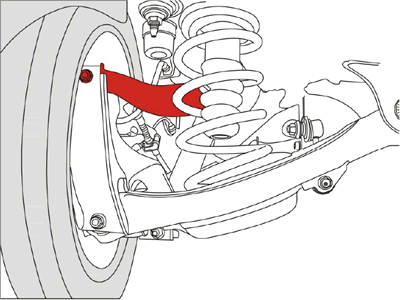

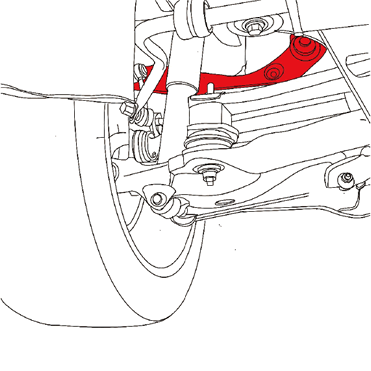

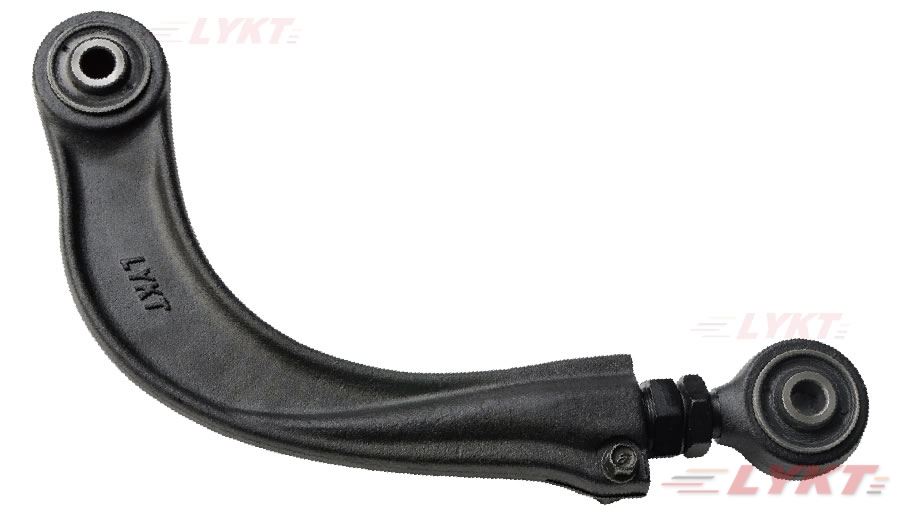

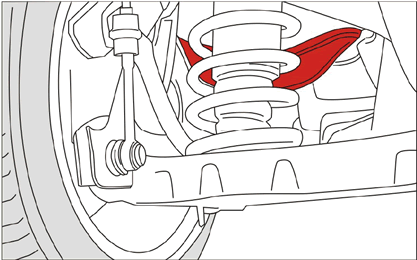

The angle between the center plane of the wheel and the vertical line is called the camber angle, that is, the angle between the geometric centerline of the wheel and the vertical line of the ground in the transverse plane of the car. To ensure that the load is applied to the center of the tire while the vehicle is under load, eliminate deviation and reduce tire wear.

Negative wheel camber angle: the wheel top edge is tilted inward, close to the engine.

Positive wheel camber angle: the wheel top edge is tilted outwards away from the engine.

Excessive positive wheel camber angle will cause:

(1)Wear the outer side of the tire

(2) increase the wear of the suspension component additionally

(3) cause the deviation.
